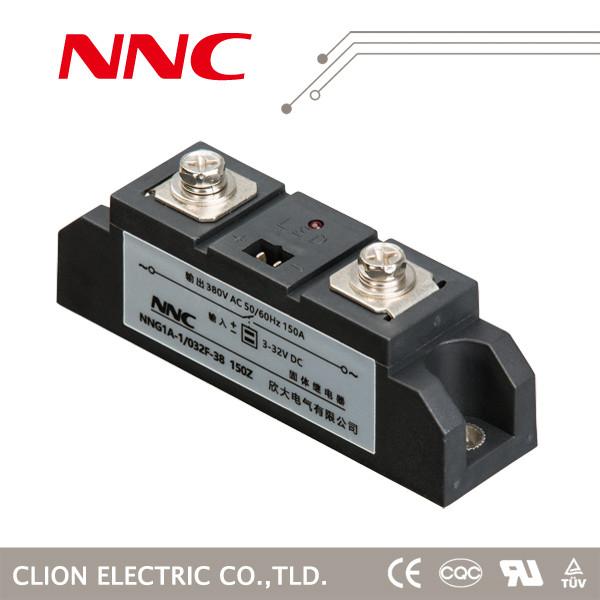

HHG1A Single-phase Indusreial SSR

Product Categories

CLION ELECTRIC CO.,LTD

Contact Now

Name: HHG1A Singlephase Indusreial SSR
Brand: Clion
Price: 1 USD

Place of Origin : China

Brand Name : Clion

Model Number : HHG1A Single-phase Indusreial SSR

Certification : CE

Contact Now

Part NO.		HHG1A-1/032F-38 100-350A(SSR-DA)	HHG1C-1/032F-120 100-350A(SSR-DA)
		DC---AC	DC---AC
Description		Single-phase Industrial SSR	Single-phase Industrial SSR
Control Voltage		014:3-14VDC 032:3-32VDC	014:3-14VDC 032:3-32VDC
Control Current		5-25mA	5-25mA
Turn-on Voltage		3VDC	3VDC
Turn-off Voltage		1VDC	1VDC
Reverse Voltage		32VDC	32VDC
Load Voltage		38:40-440VAC	120:60-1200VAC
Load Current		100A,120A,150A,200A,250A,300A,350A	100A,120A,150A,200A,250A,300A,350A
Transient Voltage		38:1100VAC	120:1600VAC
On-state Voltage Drop		＜1.6VAC	＜1.6VAC
ON-OFF Time		≤10mS	≤10mS
Off-state Leakage Current		≤10mA	≤10mA
Dielectrics Voltage-resistance		≥2500VAC	≥2500VAC
Insulation Resistance		500MΩ 500VDC testing	500MΩ 500VDC testing
Ambient temperature		-30～80℃	-30～80℃
Dimensions		*94L34W43H*	*94L34W43H*
Indicated Methods		LED	LED
Installation		Screw fixing	Screw fixing
Packing	Inner Box (PCS)	1	1
	Outer CTN (PCS)	60	30
	CTN Size	*380215175mm*	*380215175mm*
	Weight	235g/pcs G.W:15.25kg N.W:14.25kg
Radiator		HH063,HH038,HH039,HH040
Remarks		1.Load current＞10A ,a radiator is necessary,Load current＞80A, fan is necessary.
		2.When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage
